DESTINATION STRIPS
JACK PANELS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
DESIGNATION STRIPS
Designation strips with protective covers are supplied with all
tini-telephone ? jack panels, jackfields and certain standard
jack panels. Replacement kits and individual parts are also
available. Legends can be marked in pencil, ink, or lettering
transfers. Kwik-Change ? is the name of all horizontal strips.
See illustration.
Three types of designation strips are available as accessories:
1. Kwik-Change single height.
2. Kwik-Change double height.
3. X-Wide vertical.
KWIK-CHANGE ? DESIGNATION STRIPS
(SINGLE HEIGHT)
Two types of single height designation strips are available:
1. SERIES 1600, A1600, B1600, C1600, 1700, B1700,
1400300, 2600300, JP012000 through JP122000
? Extruded aluminum mounting strip
? Four mounting screws
? Marking strips
235
? Clear plastic strip covers
Mounting strips are fastened with four mounting screws
provided. Marking strip slides into the clear plastic cover, and
cover is snapped into place on the mounting strip. Legends
can be marked in pencil, ink, lettering transfers, typewriter, etc.
SPECIFICATIONS
(Used on panels 1600, A1600, B1600, C1600, 1700, B1700)
Mounting Strip: Extruded aluminum black anodized
Cover: Clear extruded plastic.
Marking Strip: White matte finish plastic.
Screws: Copper alloy, plated.
(Used on panels 1400300, 1600300)
Mounting Strip: Aluminum alloy, extruded, black anodized.
Cover: Clear extruded plastic.
Marking Strip: White matte finish plastic.
Screws: Steel, plated.
SERIES TT51 through TT62, TT-Connectorized (2-, 4- and
6-Wire), JP012000 through JP122000, TTPC and DSX
panels. Mounting strips are extruded as part of the panel.
Otherwise, use is the same as above.
ORDERING
Order by part number from table.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)

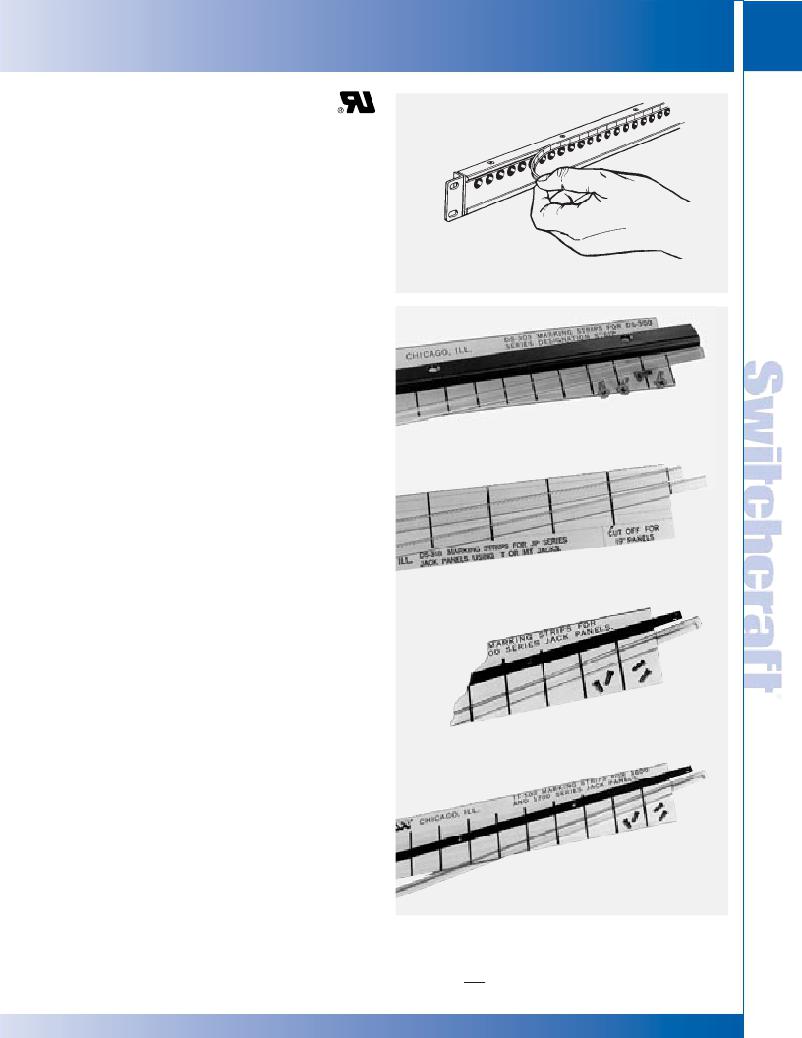

Kwik-Change Designation Strip
Kit Number DS301 (single height)
Kwik-Change Designation Strip
Kit Number DS318 (single height)
Kwik-Change Designation Strip
Kit Number TT501 (single height)
Kwik-Change Designation Strip
Kit Number TT516 (single height)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
